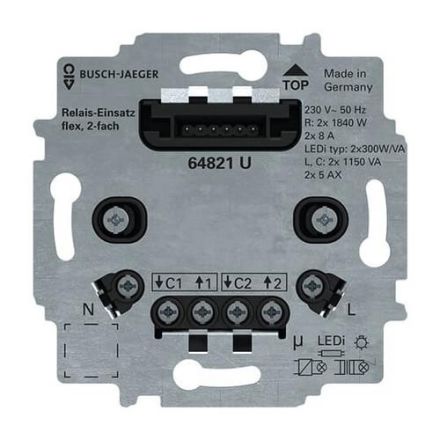

Busch-Jaeger 2CKA006800A3044 64821 U flex 2-way relay insert

In stock
SKU: 763090
€74.23
Into a basketIn the basketGo

Overview

3-wire connection technology (neutral conductor required). For switching lighting systems. For switching two independent load circuits. For controlling lighting and ventilation systems. Operation in two-way circuits possible via button extension. Operation also possible via conventional buttons (2020 US, 2021/6 UK). Without control element. For control element flex, 1-way, 64711 and Wireless, 62711-WL. For control element flex, 2-way, 64721 and Wireless, 62721-WL. For Busch-Komfortschalter® flex control element 64765-... . For Busch-Wächter® 180 flex sensors 6476x-... . For Busch-Wächter® 180 flex sensors, Wireless, 6276x-.-WL. For Busch-Präsenzmelder flex sensors 6475x-... . For Busch presence detector flex sensors, wireless 6275x-...-WL. Can be combined with extension insert flex, 64891 U. Only in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, mount or Busch-Jaeger item no. 3040 flush-mounted box masonry, 3050 flush-mounted box hollow wall or 3060 flush-mounted box concrete)

PropertyValue
Mounting type:claw/screw fastening
Nominal voltage:230 V
Mounting type:flush-mounted
Load type:universal and LED retrofit
Composition:base element
Surface finish:glossy
Color:black
RAL number (similar):9005
Light value memory:yes
Material:Plastic
Can be used with button:yes
Can be used with motion detector:yes
Extension input:yes
Can be used with radio button:yes
Can be used with IR button:yes
Can be used with presence detector:yes
Material quality:other
Can be used with timer:yes
Design:Relay and HVAC relay
Rated current:5 A
Transparent:yes
Min. depth of device box:25 mm

Characteristics

HAB64821 U flex 2-way
ManufacturerBUSCH-JAEGER
HAN2CKA006800A3044
GTIN4011395295373
VersionRelays and HVAC relays
Surface finishGlittering
Mounting typeClaw/screw fastening
Rated current5A
ColorBlack
Min. depth of the device box25 mm
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
RAL number (similar)9005
TransparentYes
MaterialPlastic
Material qualityOther
CompilationBasic element
