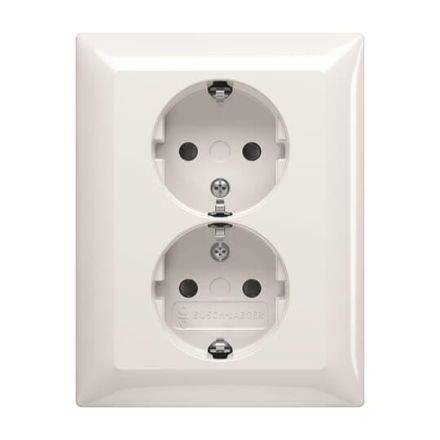

Busch-Jaeger 2TKA00003912 202 EUJRB-914 full cover double socket SCHUKO

Busch-Jaeger 2TKA00003912 202 EUJRB-914 full cover double socket SCHUKO

In stock

SKU: 769779

Price on request

€13.64

€0

Overview

Complete cover. With plug connection. 2-pole (2 P + E) Suitable for standard flush-mounted boxes. Without spreader. Only single installation possible. With 2 x 2 connection terminals per pole. SCHUKO® socket Safety+ with shutter (increased contact protection according to 0620)

Property	Value
RAL number (similar):	9010
Number of units:	2
Color:	white
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of modules (with modular design):	2
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. Depth of the device box:	40 mm

Characteristics

HAB202 EUJRB-914 full coverage

Manufacturer

HAN2TKA00003912

GTIN6438199005577

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units2

Number of modules (for modular construction)2

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Halogen freeYes

Insulated installationNo

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)9010

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
