Catalog

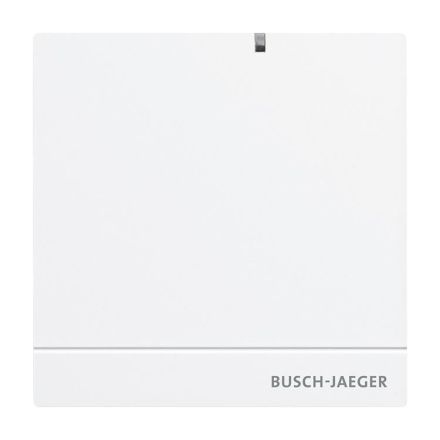

Busch-Jaeger 2TMA400260W0009 D04021-03 RF Repeater

In stock
SKU: 763019
€148.20
Into a basketIn the basketGo

Overview

Radio range (open field): 10 m Up to three repeaters can be connected in series. This means that the radio range can be extended to up to 40 m. Further details on the system structure can be found in the system manual. LED status display Power supply 12 - 24 V DC external. Installation type: Surface mounting option in combination with built-in and device boxes.

PropertyValue
Max. Number of doors:1
Standalone:no
Networkable:yes
PC connection:no
Reading method:Data carrier
Operating voltage at DC:20 to 27 V
Operating temperature:-10 to 45 °C
Mounting type:Surface-mounted
Width:90 mm
Height:30 mm
Depth:90 mm
Signal output:Light signal
Protection class (IP):IP30
Interface design:other
Color:white
Design:Bridge
Material:Plastic
Power over Ethernet:without

Characteristics

Operating voltage at DC20 to 27 V
Reading methodData carrier
StandaloneNo
Power over EthernetWithout
Max. number of doors1
PC connectionNo
Signal outputLight signal
HABD04021-03 RF
ManufacturerBUSCH-JAEGER
HAN2TMA400260W0009
GTIN6955891812901
VersionBridge
Implementation of the interfaceOther
Operating temperatur-10 to 45 °C
Width90 mm
ColorWhite
Height30 mm
Mounting typeSurface-mounted
IP protection)IP30
Depth90 mm
NetworkableYes
MaterialPlastic
