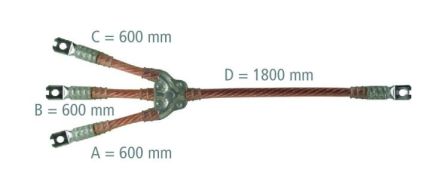

Three-pole earthing and short-circuiting cables, identical cross-section, unequipped on the phase side and earth side, to be completed with suitable terminals, in accordance with DIN0683-100 (EN/IEC 61230). Cable cross-section: 16 mm2, max. short-circuit current: 4.5 kA / 0.5 s, cable length A = 600 mm, B = 600 mm, C = 600 mm and D = 1800 mm, variant no. VE5MT89. Earthing and short-circuiting devices can be put together online using the earthing and short-circuiting configurator at www.dehn.de/de/euk.
