Dehn & Söhne VGUVRRG 4-pole 16qmm earthing/short-circuiting cable

In stock
SKU: 1060774
€350.32
Into a basketIn the basketGo

Overview

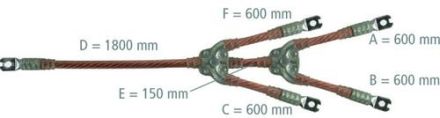

Four-pole earthing and short-circuiting cables, unequipped on the phase side and earth side, to be completed with suitable terminals, in accordance with DIN0683-100 (EN/IEC 61230). Cable cross-section: 16 mm2, max. short-circuit current: 4.5 kA / 0.5 s, cable length A, B, C, F = 600 mm, E = 150 mm and D = 1800 mm, variant no. VGUVRRG. Earthing and short-circuiting devices can be put together using the earthing and short-circuiting configurator online at www.dehn.de/de/euk.

PropertyValue
Number of poles:4
Weight:1.67
Weight unit:KG
Commodity statistical number:85359000
Material:Copper
Max. Short-circuit current:4.5 kA
Cable cross-section phase side:16 mm²
Cable cross-section earth side:16 mm²
Length phase cable a:600 mm
Length phase cable b:600 mm
Length phase cable c:600 mm
Length earth cable:1800 mm
Connection part phase side:without
Connection part earth side:without
Version:Cable
Brief description:Earthing and short-circuiting cable 4-pole 16mm² with pressed-on cable lugs

Characteristics

HABVGUVRRG 4-pin 16qmm
ManufacturerDehn & Söhne
HANVGUVRRG
GTIN4013364164000
VersionCable
Weight1,67
Weight unit kg
Short descriptionEarthing and short-circuiting cable 4-pole 16 mm² with pressed-on cable lugs
Number of poles4
Statistical commodity code85359000
MaterialCopper
Dehn & Söhne VGUVRRG 4-pole 16qmm earthing/short-circuiting cable
