Dehn & Söhne VN63A91 3-pole 35qmm earthing/short-circuiting device

In stock
SKU: 1060815
€1,175.53
Into a basketIn the basketGo

Overview

Earthing and short-circuiting device with clamp terminals for bare busbars according to DIN0683-100 (EN/IEC 61230) for earthing and short-circuiting electrical systems at the workplace as a potential equalization measure according to DIN0105-100 (EN 50110). Other cable lengths can be selected online using the earthing and short-circuiting configurator at www.dehn.de/de/euk.

PropertyValue
Number of poles:3
Weight:5.4
Weight unit:KG
Commodity statistical number:85359000
Material:Copper
Max. Short-circuit current:10.0 kA
Cable cross-section phase side:35 mm²
Cable cross-section earth side:35 mm²

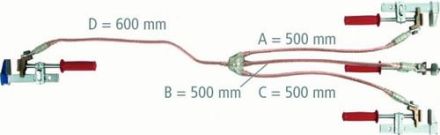

Length phase cable a:500 mm
Length phase cable b:500 mm
Length phase cable c:500 mm
Length earth cable:600 mm
Connection part phase side:Clamp terminal
Connection part earth side:Clamp terminal
Design:Cable
Brief description:Earthing and short-circuiting device 3-pole 35mm² with clamp terminals

Characteristics

HABVN63A91 3-pin 35qmm
ManufacturerDehn & Söhne
HANVN63A91
GTIN4013364163812
VersionCable
Weight5,4
Weight unit kg
Short descriptionEarthing and short-circuiting device 3-pole 35 mm² with clamp terminals
Number of poles3
Statistical commodity code85359000
MaterialCopper
Dehn & Söhne VN63A91 3-pole 35qmm earthing/short-circuiting device
Dehn & Söhne VN63A91 3-pole 35qmm earthing/short-circuiting device
€1,175.53
Into a basketIn the basketGo
