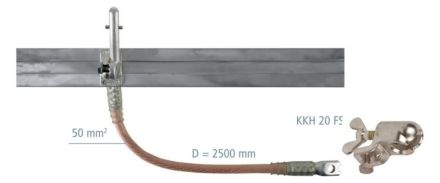

Short-circuiting rail made of aluminum (AlMgSi 0.5) according to DIN0683-100 (EN/IEC 61230) for earthing and short-circuiting electrical systems at the workplace according to DIN0105-100 (EN 50110). Suspension device: spindle with hexagon, profile: 60x8 mm, max. short-circuit current: 60 kA / 0.5 s. Variant no. VSJ3Y6N (with standard lengths: short-circuiting rail = 1500 mm, earthing cable = 2500 mm equipped with KKH Art. No. 772 312) Other rail and earthing cable lengths can be selected online using the EuK configurator at www.dehn.de/de/euk.
