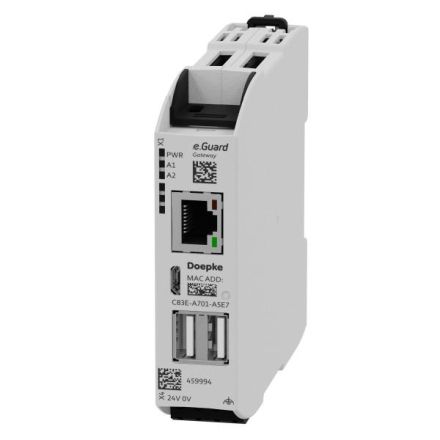

Doepke 09344989 e.Guard Gateway

In stock

SKU: 893070

Price on request

€1,064.68

€0

Overview

The gateway is a component for connecting different systems. It is used for communication between several internal or external network sections. The data is processed in its addressing for forwarding. The e.Guard gateway is an accessory of the e.Guard system and represents the communication interface between the e.Guard residual current transformer and the e.Guard software. Depending on the selected e.Guard LEVEL, the device is used for local data storage and software use or for transferring data to the cloud. It thus enables the visualization, evaluation and management of the recorded residual currents and the setting of alarm thresholds. Properties: The e.Guard gateway is an industrial gateway (IoT) for DIN rail mounting. The width is 1 TE. Mounting type: Quick fastening on a mounting rail, Areas of application: Individual system monitoring through permanent monitoring in industrial plants, e.g. automotive industry, mechanical engineering, galvanization, logistics, feed industry, agricultural operations, data centers, medical technology.

Property	Value
Height:	96 mm
Width:	22.5 mm
Depth:	110.5 mm
Type of supply voltage:	DC
Protection class (IP):	IP20
Suitable for safety functions:	no
Rack mounting possible:	no
IO-Link Master:	no
Supply voltage for DC:	10.2 to 28.8 V
Wireless standard WLAN 802.11:	no
Wall/direct mounting possible:	no
Front installation possible:	no
Performance level according to EN ISO 13849-1:	without
Wireless standard Bluetooth:	no
System component:	yes
With electrical isolation:	no
Field bus connection possible via separate bus coupler:	no
Mounting rail mounting possible:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for SERCOS:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for MODBUS:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for TCP/IP:	yes
Supports protocol for Data-Highway:	no
Supports protocol for ASI:	no
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for SUCONET:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard GPRS:	no
Wireless standard GSM:	no
Supports protocol for PROFIBUS:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for INTERBUS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for PROFINET IO:	no
SIL according to IEC 61508:	without
Radio standard UMTS:	no
