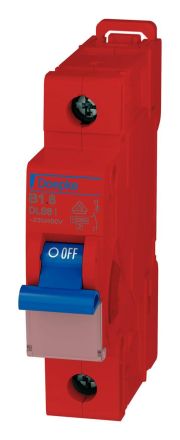

Doepke 09860100 DLS 6I B10-1 RT 6kA circuit breaker

In stock
SKU: 714857
€19.37
Into a basketIn the basketGo

Overview

The purpose of circuit breakers is to automatically switch off circuits to protect cables and connected devices. After switching off, they can be switched on again manually without, for example, having to replace fuse inserts. Each of our circuit breakers is equipped with a trip-free mechanism that ensures safe switching off, even if, for example, the switch knob is mechanically blocked. Circuit breakers in the DLS 6 series protect cables, lines and installation devices against overload and short circuits in accordance with DIN0100. The series includes a large selection of different types, from switches for residential and commercial buildings to switches for industrial use. Thanks to their compact design, circuit breakers in the DLS 6 series offer maximum space for convenient wiring. The large clamping range and the option of using commercially available wiring rails ensure easy installation. In addition, a large number of additional devices such as shunt releases and auxiliary and fault indicators can be connected. The DLS 6i version allows individual devices to be removed from a busbar assembly thanks to the locking slides on both sides. With their rated switching capacity of 6 kA, they meet the requirements of domestic installations. In addition, the large selection of rated currents and tripping characteristics enables the circuit breaker to be used in many applications. Switches with tripping characteristic B ensure standard protection for light and socket circuits. This variant is characterized by the red housing. Properties: Rated switching capacity 6 kA, clamping yoke terminals with a wide clamping cross-section range for busbar and cable wiring on both connection sides, special quick fastening for removing several circuit breakers from the lower or upper busbar assembly, large. Hinged label window for secure hold and protection of the label, use of commercially available wiring rails, ON/OFF switch position indicator on the switch knob, accessories can be retrofitted on the right, free labeling software, mounting type: quick fastening on mounting rail, installation position as desired, areas of application: suitable for use in power supplies for industrial plants and purpose-built or commercial buildings.

PropertyValue
Tripping characteristic:B
Rated current:10 A
Rated voltage:400 V
Type of voltage:AC/DC
Frequency:16.67 to 60 Hz
Width in pitch units:1
Number of poles (total):1
Energy limitation class:3
Additional equipment possible:yes
Overvoltage category:3
Installation depth:68 mm
Protection class (IP):IP20
Rated switching capacity Icn according to EN 60898 at 230 V:6 kA
Rated switching capacity Icn according to EN 60898 at 400 V:6 kA
Pollution degree:2
Switching neutral conductor:no
Number of protected poles:1
Rated insulation voltage Ui:2 V
Rated impulse withstand voltage Uimp:4 kV
Ambient temperature during operation:-25 to 55 °C
Connectable conductor cross-section, stranded:1.5 to 25 mm²
Connectable conductor cross-section, solid:0.5 to 25 mm²

Characteristics

HABDLS 6I B10-1 RT 6kA
ManufacturerDOEPKE
HAN09860100
GTIN4014712263307
Connectable conductor cross-section solid0.5 to 25 mm²
Connectable conductor cross-section stranded1.5 to 25 mm²
Number of protected poles1
Trigger characteristicsB
Rated insulation voltage Ui2V
Rated switching capacity Icn according to EN 60898 at 230 V6kA
Rated switching capacity Icn according to EN 60898 at 400 V6kA
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current10A
Width in pitch units1
Installation depth68 mm
Energy limitation class3
Frequency16.67 to 60 Hz
Switching neutral conductorNo
Number of poles (total)1
IP protection)IP20
Voltage typeAC/DC
Ambient temperature during operation-25 to 55 °C
Degree of contamination2
Additional equipment possibleYes
Overvoltage category3
