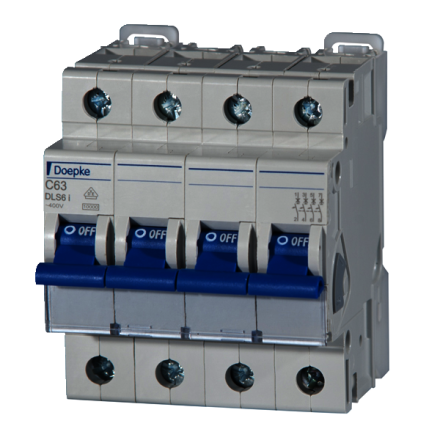

The purpose of circuit breakers is to automatically switch off circuits to protect cables and connected devices. After switching off, they can be switched on again manually without, for example, having to replace fuse inserts. Each of our circuit breakers is equipped with a trip-free mechanism that ensures safe switching off, even if, for example, the switch knob is mechanically blocked. Circuit breakers in the DLS 6 series protect cables, lines and installation devices against overload and short circuits in accordance with DIN0100. The series includes a large selection of different types, from switches for residential and commercial buildings to switches for industrial use. Thanks to their compact design, circuit breakers in the DLS 6 series offer maximum space for convenient wiring. The large clamping range and the option of using commercially available wiring rails ensure easy installation. In addition, a large number of additional devices such as shunt releases and auxiliary and fault indicators can be connected. The DLS 6i version is particularly suitable for use in industrial plants due to its high rated switching capacity of 10 kA. Switches with tripping characteristic C are optimized for power circuits with high inrush or peak currents. Properties: Rated switching capacity 10 kA, clamping yoke terminals with a wide clamping cross-section range for rail and line wiring on both connection sides, special quick fastening for removing several circuit breakers from the lower or upper rail assembly, large, hinged labeling window for secure hold and protection of the label, use of commercially available wiring rails, ON/OFF switch position indicator on the switch knob, accessories can be retrofitted on the right, free labeling software, mounting type: quick fastening on mounting rail, installation position as desired, areas of application: suitable for use in power supplies for industrial plants and purpose-built or commercial buildings.
