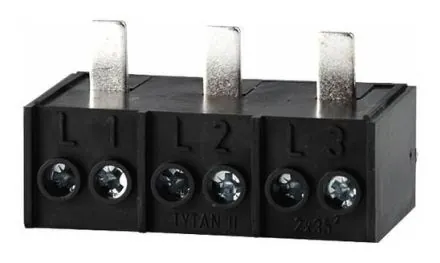

Doepke DK D0 double terminal, 3-pin, 3x2x35, 09980140

In stock
SKU: 494306
€29.10
Into a basketIn the basketGo

Overview

Terminals for phase rails for feeding into switching devices. The double terminal enables all three feed lines to be looped through to D0 load disconnectors. Properties: - There are two input terminals per phase, - Permitted connection cross-section of 1.5 mm2 - 35 mm2

PropertyValue
Number of poles:3
Touch safe:no
Width:80.5 mm
Height:43.7 mm
Depth:28.8 mm
Connection type:Screw/spring connection
Mounting type:Screw
Number of inputs:1
Number of outputs:1
Suitable for solid Conductor:yes
Suitable for multi-wire conductors:no
Suitable for fine-wire conductors:no
Suitable for fine-wire conductors without wire end ferrules:yes
Suitable for extra-fine-wire conductors:no
Suitable for extra-fine-wire conductors without wire end ferrules:yes
Conductor cross-section access:1.5 to 35 mm²
Conductor cross-section access AWG:0

Characteristics

Number of outputs1
Number of inputs1
ManufacturerDOEPKE
HAN09980140
GTIN4014712049000
Connection typeScrew/spring connection
Width80.5 mm
Suitable for fine-stranded conductorsNo
Suitable for solid laddersYes
Suitable for stranded conductorsNo
Height43.7 mm
Mounting typeScrew
Number of poles3
Depth28.8 mm
