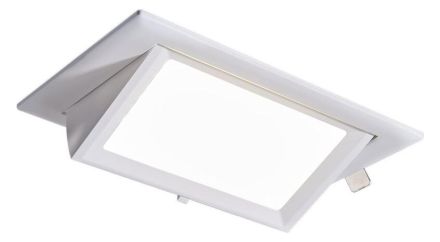

HABFLEXA COLORselect 28W/38W 60° swivel.
HAN1946-0FW100
GTIN4260629148224
Covering the luminaire with thermal insulation material possibleNo
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-14180lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Suitable for computer workstations according to EN 12464-1No
Width145 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation width130 mm
Installation length227 mm
Color rendering index CRI90-100
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Height/Depth103 mm
Power factor0.97
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Luminous flux4180lm
Length240 mm
Max. system performance38W
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
Brushed surfaceNo
Without dimming functionYes
IP protection)IP20
Protection classII
Voltage typeAC
