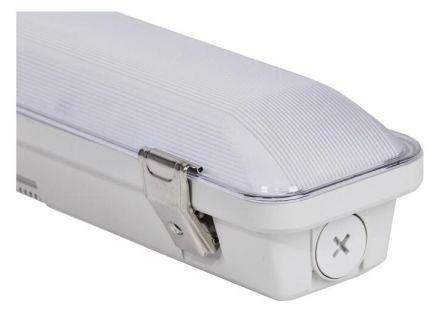

Dotlux 2355-440120 MISTRAL IP66 1240mm 38W 4000K frosted LED waterproof luminaire

Dotlux 2355-440120 MISTRAL IP66 1240mm 38W 4000K frosted LED waterproof luminaire

In stock

SKU: 944765

Price on request

€94.30

€0

Overview

Faster installation thanks to a new type of luminaire construction. Combination of LED device carrier and cover. Individually replaceable branded components for the lowest maintenance costs UV-stable, shatter-proof IK08/IP66 polycarbonate housing with frosted cover ensures shadow-free light distribution 5-pin through-wiring with two internal luminaire connection terminals 2 full-fledged cable glands & blind plugs Rust-proof stainless steel fasteners with integrated anti-theft device Mounting accessories included (chain/ceiling/wall mounting) including rear wall punchings The D mark of this luminaire with limited surface temperature is a basic requirement for luminaires in fire-hazardous areas (DIN EN 60598-2-24,0711-2-24) This LED luminaire is suitable for use in food processing plants. This means that it can also be used in areas that are certified according to the International Featured Standard (IFS) or British Retail Consortium (BRC). Sustainable product design thanks to easily replaceable components

Property	Value
Max. System power:	38 W
Rated luminous flux according to IEC 62722-2-1:	4800 lm
Length:	1240 mm
Width:	100 mm
Height/depth:	80 mm
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With Motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	no
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
With control gear:	yes
Cover material:	opal plastic
Without dimming function:	yes
With light sensor:	no
Control gear:	LED control gear, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Power factor:	0.9

Characteristics

HABMISTRAL IP66 1240mm 38W 4000K frosted

Manufacturer

HAN2355-440120

GTIN4260629149269

Covering the luminaire with thermal insulation material possibleNo

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14800lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorGray

Height/Depth80 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Length1240 mm

Max. system performance38W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK08

IP protection)IP66

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
