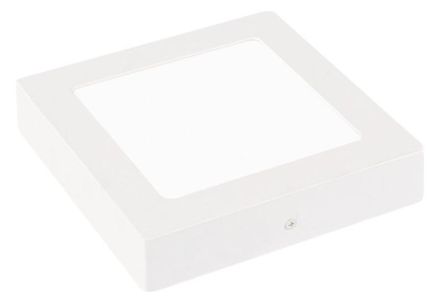

HABPanel TOPsquare 225x225mm 18W 4000K
HAN2529-140120
GTIN4260629149306
Covering the luminaire with thermal insulation material possibleNo
Rated lifetime L80/B10 at 25 °C20000 hours
Rated luminous flux according to IEC 62722-2-11620lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width225 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Height/Depth35 mm
Power factor0.5
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Length225 mm
Max. system performance18W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
IP protection)IP20
Protection classII
Voltage typeAC
Housing materialPlastic
