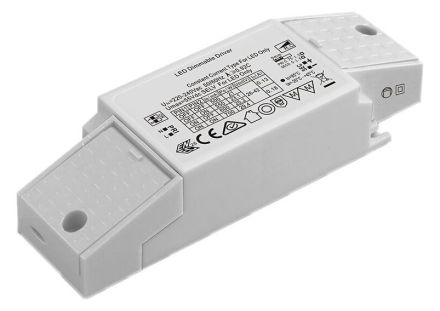

Dotlux 3138-1 CC 13-30W 500-700mA 26-42V dim LED control gear

Dotlux 3138-1 CC 13-30W 500-700mA 26-42V dim LED control gear

In stock

SKU: 944855

Price on request

€28.82

€0

Overview

The power supply is dimmable via trailing edge phase dimmer or leading edge phase dimmer With the constant current technology (CC) it is suitable for lights with constant current The connected constant current lights can be dimmed between 10%-100% Suitable dimmers: JUNG 1224 LED UDE, Eltako EUD61NPL-230V, GIRA Mini2440 00 and many more The output current is adjustable: 500/550/600/700mA The power supply is set to 500mA as standard

Property	Value
Output power:	13 to 30 W
Protection class (IP):	IP20
Output voltage:	110 to 240 V
Protection class:	II
Length:	138 mm
Width:	44 mm
Height:	30 mm
Suitable for outdoor use:	no
Suitable for constant voltage:	no
Suitable for constant current:	no
Suitable for direct current (primary side):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DSI:	no
Dimming DMX:	no
Dimming Potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
