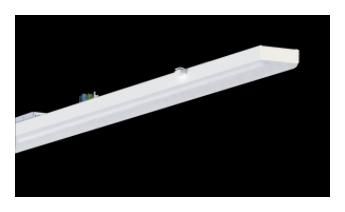

DOTLUX 3293-240180-DALI LED light insert LINEAselect 1437mm 25-75W 4000K dimmable DALI 180°

In stock
SKU: 484950
€229
Into a basketIn the basketGo

Overview

Quick fasteners for all connections+ Support rail that can be mounted without tools with integrated through-wiring+ Luminaire insert with flexible phase selection and power adjustment+ Optimized transmission level of the diffuser+ Self-cooling LED module+ High light output thanks to optimized profile design+ Easily replaceable light units with an excellent price-performance ratio+ Long service life thanks to oversized cooling+ Suitable for central battery

PropertyValue
Max. System power:75 W
Rated luminous flux according to IEC 62722-2-1:11680 lm
Length:1437 mm
Width:65 mm
Height/depth:59 mm
Protection class (IP):IP40
Luminaire with limited surface temperature 'D-mark':no
Nominal voltage:110 to 276 V
Housing color:white
Color temperature:4000 K
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Rated service life L80/B10 at 25 °C:50000 h
Suitable for wall mounting:no
Voltage type:AC
With motion detector:no
Beam angle:extremely wide beam>80°
With light source:no
Light source:LED not replaceable
Rated ambient temperature according to IEC62722-2-1:-20 to 45 °C
With control gear:yes
Cover material:opal plastic
Without dimming function:no
With light sensor:no
Control gear:LED control gear, current-controlled
Suitable for recessed mounting:no
Light color:white
Suitable for computer workstations in accordance with EN 12464-1:no
Suitable for strip light configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:yes
Suitable for emergency lighting:no
Design of the grid:white
Covering of the luminaire with thermal insulation material possible:no
DMX dimming:no
DSI dimming:no
With air slots:no
Dimming LineSwitch:no
Dimming potentiometer (integrated in device):no
Dimming 0-10 V:no
Dimming GPRS:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:yes
Dimming mains voltage modulation:no
Dimming trailing edge phase control:no
Dimming leading edge phase control:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming depending on operating device:no
Power factor:0.98

Characteristics

ManufacturerDotlux
HAN3293-240180-DALI
GTIN4260629140280
Covering the luminaire with thermal insulation material possibleNo
Execution of the gridWhite
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-111680lm
Rated ambient temperature according to IEC62722-2-1-20 to 45 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width65 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth59 mm
Power factor0.98
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Length1437 mm
Max. system performance75W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage110 to 276 V
Without dimming functionNo
IP protection)IP40
Voltage typeAC
Cover materialPlastic opal
