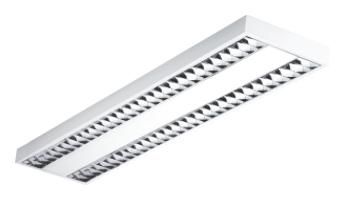

DOTLUX 3394-040090 LED surface-mounted light GRIDlong 1500x295mm 38W 4000K UGR

In stock
SKU: 484694
€325.94
Into a basketIn the basketGo

Overview

Replaceable LED modules with screwless quick-release fastener + Cable entry possible on the back and front + Solid, powder-coated metal housing + Fatigue-free working thanks to flicker-free light + Larger housing covers replaced lights and saves painting work if necessary + Connection via light terminal

PropertyValue
Max. System power:50 W
Rated luminous flux according to IEC 62722-2-1:5750 lm
Length:1496 mm
Width:295 mm
Height/depth:60 mm
Protection rating (IP):IP20
Protection class:I
Luminaire with limited surface temperature 'D-mark':no
Nominal voltage:220 to 240 V
Color temperature:4000 K
Impact resistance:IK05
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Rated service life L80/B10 at 25 °C:50000 h
Suitable for wall mounting:no
Voltage type:AC
With motion detector:no
Beam angle:extremely wide beam>80°
With light source:no
Light source:LED not replaceable
Rated ambient temperature according to IEC62722-2-1:-25 to 50 °C
With control gear:yes
Cover material:opal plastic
Without dimming function:yes
With light sensor:no
Suitable for recessed mounting:no
Light color:white
Suitable for computer workstations according to EN 12464-1:yes
Suitable for strip light configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:yes
Suitable for emergency lighting:no
Covering of the luminaire with thermal insulation material possible:no
DMX dimming:no
DSI dimming:no
With air slots:no
LineSwitch dimming:no
Dimming potentiometer (integrated in the device):no
Dimming 0-10 V:no
Dimming GPRS:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming dependent on operating device:no

Characteristics

ManufacturerDotlux
HAN3394-040090
GTIN4260210327298
Covering the luminaire with thermal insulation material possibleNo
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-15750lm
Rated ambient temperature according to IEC62722-2-1-25 to 50 °C
Suitable for computer workstations according to EN 12464-1Yes
Width295 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Height/Depth60 mm
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Length1496 mm
Max. system performance50W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Impact resistanceIK05
IP protection)IP20
Protection classI
Voltage typeAC
Cover materialPlastic opal
