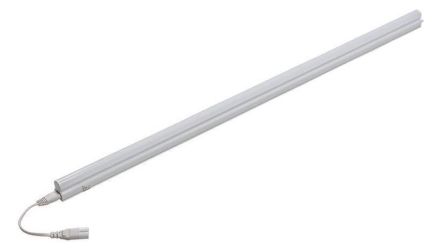

Dotlux 3532-140180 ENDLESS 900mm 12W 4000K LED light bar

Dotlux 3532-140180 ENDLESS 900mm 12W 4000K LED light bar

In stock

SKU: 944813

Price on request

€22.54

€0

Overview

Direct connection to 230 V - no external power supply required Impact-resistant housing made of shatter-proof polycarbonate 'SEAMLESS CONNECT' - Barely visible interruption due to the seamless connection 'DOT FREE' design with uniform illuminated surface Each light can be switched individually - does not affect the through-wiring Incl. seamless connector and cable connector (20 cm) Connection cable can be ordered separately Up to 10 light strips can be operated in series via one connection cable.

Property	Value
Max. System power:	12 W
Nominal voltage:	220 to 240 V
Rated luminous flux according to IEC 62722-2-1:	1340 lm
Color temperature:	4000 K
With control gear:	yes
With light source:	no
Width:	22 mm
Length:	872 mm
Housing color:	white
Control gear:	LED control gear, current-controlled
Protection type (IP):	IP20
Protection class:	II
Light source:	LED not replaceable
Electrical connection with plug-in system:	no
With switch:	no
Luminaire with limited surface temperature 'D-mark':	no
Covering of the luminaire with thermal insulation material possible:	no
Suitable for emergency lighting:	no
Voltage type:	AC
Light color:	white
Color rendering index CRI:	80-89
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Rated service life L80/B10 at 25 °C:	30000 h
With motion detector:	no
Power factor:	0.6
Height/depth:	32 mm

Characteristics

With switchNo

HAB900mm 12W 4000K

Manufacturer

HAN3532-140180

GTIN4260629148347

Covering the luminaire with thermal insulation material possibleNo

Rated lifetime L80/B10 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-11340lm

Operating deviceLED control gear current controlled

Width22 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Electrical connection with plug-in systemNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth32 mm

Power factor0.6

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Length872 mm

Max. system performance12W

With operating deviceYes

With motion detectorNo

With light sourceNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP20

Protection classII

Voltage typeAC
