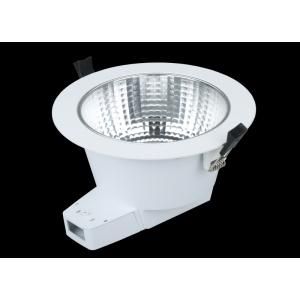

DOTLUX 3840-040090 LED downlight CIRCLEugr 13W 3000/4000/5700K COLORselect

DOTLUX 3840-040090 LED downlight CIRCLEugr 13W 3000/4000/5700K COLORselect

In stock

SKU: 484233

Price on request

€54.41

€0

Overview

COLORselect 3 light colors in one lamp. The right light color can be set for every application environment. Warm white 3,000 K: hotel, shop, wellness/spa areas, home & livingNeutral white 4,000 K: office, catering, industry, sanitary facilities, retirement homes and hospitalsDaylight white 5,700 K: industry, conference rooms, educational institutions, office + Glare-free lamp design (UGR + Faceted multi-reflector ensures uniform illumination + Tool-free terminal connection (can be wired through with integrated strain relief) + Splash-proof housing design (IP 54 front) + SmartCooling: room-side heat dissipation through aluminum reflector + Distance-free installation possible + Suitable for central battery

Property	Value
Max. System power:	13 W
Rated luminous flux according to IEC 62722-2-1:	1417 lm
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP54
Outer diameter:	145 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	no
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	82 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	110 to 276 V
Rated service life L80/B10 at 25 °C:	50000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	white
Luminous flux:	1417 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Power factor:	0.9
Suitable for VDU workstations according to EN 12464-1:	yes

Characteristics

Manufacturer

HAN3840-040090

GTIN4260523592413

Covering the luminaire with thermal insulation material possibleNo

Outer diameter145 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11417lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth82 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Luminous flux1417lm

Max. system performance13 W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage110 to 276 V

Brushed surfaceNo

Without dimming functionYes

ReflectorWhite

Impact resistanceIK06

IP protection)IP54

Protection classII

Voltage typeAC

Housing materialPlastic
