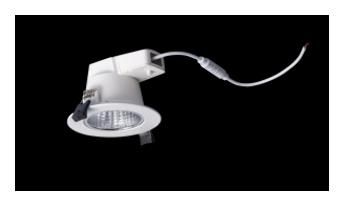

DOTLUX 4567-0FW090 LED downlight CIRCLEugr-dim 5W 3000/4000/5700K COLORselect without driver

DOTLUX 4567-0FW090 LED downlight CIRCLEugr-dim 5W 3000/4000/5700K COLORselect without driver

In stock

SKU: 484929

Price on request

€39.88

€0

Overview

COLORselect 3 light colors in one lamp. The right light color can be set for every application environment. Warm white 3,000 K: hotel, shop, wellness/spa areas, home & livingNeutral white 4,000 K: office, catering, industry, sanitary facilities, retirement homes and hospitalsDaylight white 5,700 K: industry, conference rooms, educational institutions, office + Glare-free lamp design (UGR + Faceted multi-reflector ensures uniform illumination + Tool-free terminal connection (can be wired through with integrated strain relief) + Splash-proof housing design (IP 54 front) + SmartCooling: room-side heat dissipation through aluminum reflector + Distance-free installation possible + Suitable for central battery

Property	Value
Max. System power:	5 W
Rated luminous flux according to IEC 62722-2-1:	500 lm
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP54
Outer diameter:	110 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	III
With light source:	no
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	70 mm
With motion detector:	no
Color temperature:	4000 K
Rated service life L80/B10 at 25 °C:	50000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Luminous flux:	440 to 500 lm
Cover material:	without
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Power factor:	0.9
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	without

Characteristics

Manufacturer

HAN4567-0FW090

GTIN4260629140532

Covering the luminaire with thermal insulation material possibleNo

Outer diameter110 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1500lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth70 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Luminous flux440 to 500 lm

Light distributorWithout

Max. system performance5W

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

Impact resistanceIK06

IP protection)IP54

Protection classIII

Voltage typeDC

Cover materialWithout

Housing materialPlastic
