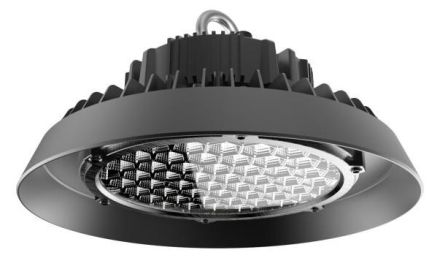

Dotlux 4988-050080 LIGHTSHOWERugr 200W 5000K 1-10V dim LED high bay light

Dotlux 4988-050080 LIGHTSHOWERugr 200W 5000K 1-10V dim LED high bay light

In stock

SKU: 944197

Price on request

€431.56

€0

Overview

Optimum light output thanks to double glare protection with 75° honeycomb reflector and glare limitation ring UGR typical Additional savings potential thanks to optionally retrofittable daylight/motion sensors that can be programmed via infrared remote control POWERselect in combination with sensors - adjustable via the remote control (70%, 80%, 90%, 100%) 1-10V dimmable, with optional converter Art.5078 also DALI-capable Optimum light output even at great heights thanks to already installed 75° Corrosion-protected by powder-coated, robust aluminum housing IP65/IK10 with perfect heat dissipation Integrated pressure equalization valve extends the service life of the seals and prevents condensation in the luminaire D-certified for use in fire-hazardous areas according to DIN EN 60598-2-24,0711-2-24 Sustainable product design thanks to easily replaceable components the following sensors are optional can be ordered: Motion sensor radar (Art.No. 4901), in addition to the sensor, the bracket Art.No. 4999 is required and at least one remote control Art.No. 4902l

Property	Value
Max. System power:	200 W
Rated luminous flux according to IEC 62722-2-1:	30200 lm
Housing color:	black
Housing material:	glass
Protection class (IP):	IP65
Outer diameter:	360 mm
Light source:	LED not replaceable
With light source:	no
With control gear:	no
Suitable for recessed mounting:	no
Height/depth:	195 mm
With motion detector:	yes
Color temperature:	5000 K
Nominal voltage:	100 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Luminous flux:	30200 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	yes
Dimming 1-10 V:	yes
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Power factor:	0.97
Suitable for computer workstations according to EN 12464-1:	yes

Characteristics

HABLIGHTSHOWERugr 200W 5000K 1-10V dim

Manufacturer

HAN4988-050080

GTIN4260629146275

Covering the luminaire with thermal insulation material possibleNo

Outer diameter360 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-130200lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VYes

Dimming 1-10 VYes

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Height/Depth195 mm

Power factor0.97

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Luminous flux30200lm

Max. system performance200W

With operating deviceNo

With motion detectorYes

With light sourceNo

With light sensorNo

Nominal voltage100 to 240 V

Brushed surfaceNo

Without dimming functionNo

Impact resistanceIK08

IP protection)IP65

Voltage typeAC

Housing materialGlass

Dotlux 4988-050080 LIGHTSHOWERugr 200W 5000K 1-10V dim LED high bay light

Price on request

€431.56

€0
