Dotlux 5046-030120 WALLsquare 24cm 6W 3000K with twilight LED house number light

Dotlux 5046-030120 WALLsquare 24cm 6W 3000K with twilight LED house number light

In stock

SKU: 944781

Price on request

€209.30

€0

Overview

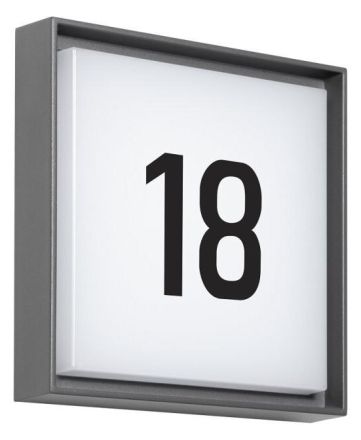

High-quality aluminum housing with powder coating in RAL7016 Robust, jet-proof design for outdoor use with IP 65 protection Glare-free, homogeneous and shadow-free light distribution EasyBase platform enables simple and quick installation with twilight switch including mounting accessories Insect-friendly lighting through warm white LEDs Order the house number set 4751 separately: This includes 3 sets of numbers (0 - 9) and one set of letters each in uppercase (A - H) and lowercase letters (a - h) with a letter height of 8.5 cm.

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	550 lm
Length:	235 mm
Width:	235 mm
Height/depth:	65 mm
Protection class (IP):	IP65
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Material of the Housing:	Aluminum
Color temperature:	3000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	30000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	extreme wide beam>80°
With light source:	no
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
With control gear:	no
Cover material:	Opal plastic
Without dimming function:	no
With light sensor:	no
Suitable for recessed mounting:	no
Suitable for computer workstations according to EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Power factor:	0.9

Characteristics

HABWALLsquare 24cm 6W 3000K with twilight switch

Manufacturer

HAN5046-030120

GTIN4260629147777

Covering the luminaire with thermal insulation material possibleNo

Rated lifetime L80/B10 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-1550lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Suitable for computer workstations according to EN 12464-1No

Width235 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorGray

Height/Depth65 mm

Power factor0.9

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Length235 mm

Max. system performance6W

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK08

IP protection)IP65

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
