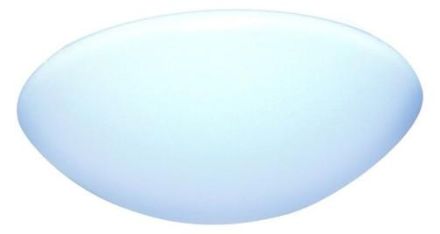

HABLUNAbasic IP44 Ø260mm 12W 3000K
HAN5051-030180
GTIN4260629147883
Covering the luminaire with thermal insulation material possibleNo
Execution of the gridWhite
Outer diameter260 mm
Rated lifetime L80/B10 at 25 °C30000 hours
Rated luminous flux according to IEC 62722-2-1700lm
Rated ambient temperature according to IEC62722-2-1-20 to 35 °C
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth90 mm
Power factor0.5
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Max. system performance12W
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Impact resistanceIK03
IP protection)IP44
Protection classI
Voltage typeAC
Cover materialPlastic opal
