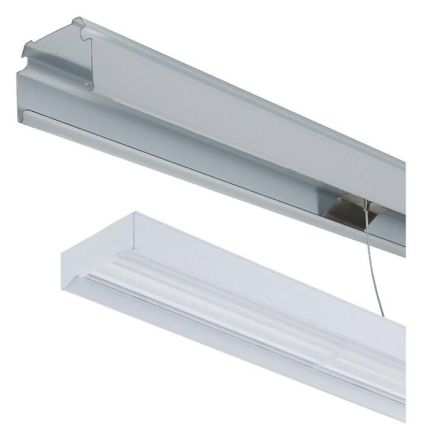

Dotlux 5061-040090 LINEAlock 1437mm 25-75W 4000K dim 1-10V LED light insert

Dotlux 5061-040090 LINEAlock 1437mm 25-75W 4000K dim 1-10V LED light insert

In stock

SKU: 944892

Price on request

€191.27

€0

Overview

Glare-reduced 90° PMMA lens optics UGR Fastest attachment thanks to adjustable spring clips Environmentally friendly reuse of your existing mounting rail system Independent, integrated cable system (8 x 1.5 mm2 including emergency lighting charging current) with quick connectors Flexible phase selection and power adjustment directly in the luminaire Long service life thanks to oversized cooling Incl. two safety catch cables/assembly aid Adjustable power through POWERselect 13550lm@ 75W 11850lm@ 65W 10200lm@ 55W 8650lm@ 45W 7850lm@ 40W 6750lm@ 35W 5850lm@ 30W 4800lm@ 25W

Property	Value
Max. System power:	75 W
Rated luminous flux according to IEC 62722-2-1:	12000 lm
Length:	1437 mm
Width:	67 mm
Height/depth:	25 mm
Protection class (IP):	IP40
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Color temperature:	4000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	no
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
With control gear:	yes
Cover material:	Opal plastic
Without dimming function:	no
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	white
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	yes
Dimming GPRS:	no
Dimming 1-10 V:	yes
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Power factor:	0.95

Characteristics

HABLINEAlock 1437mm 25-75W 4000K dim 1-10V

Manufacturer

HAN5061-040090

GTIN4260629148002

Covering the luminaire with thermal insulation material possibleNo

Execution of the gridWhite

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-112000lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width67 mm

Dimming 0-10 VYes

Dimming 1-10 VYes

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth25 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Length1437 mm

Max. system performance75W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK06

IP protection)IP40

Voltage typeAC

Cover materialPlastic opal
