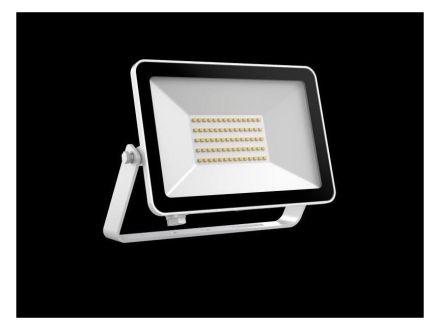

HABFLOORslim 50W 4000K white
HAN5143-040120
GTIN4260629149634
Covering the luminaire with thermal insulation material possibleNo
Rated luminous flux according to IEC 62722-2-15950lm
Rated ambient temperature according to IEC62722-2-1-30 to 50 °C
Suitable for computer workstations according to EN 12464-1No
Width192 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11Without
Height/Depth44 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Luminous flux5950lm
Light distributorWithout
Length239 mm
Max. system performance50W
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
Nominal voltage220 to 240 V
Brushed surfaceNo
Without dimming functionYes
ReflectorWhite
Impact resistanceIK08
IP protection)IP65
Protection classI
Voltage typeAC
Cover materialGlass transparent
Housing materialAluminum
