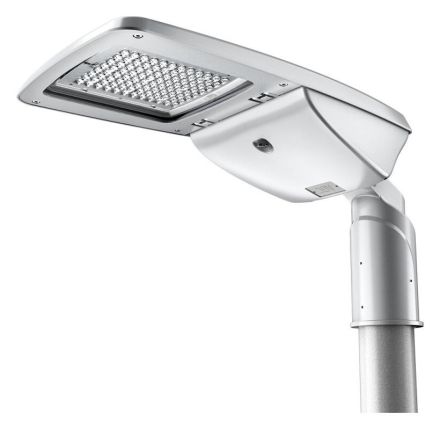

Dotlux 5158-040155 DOLPHINmini 150W 4000K 1-10V dim LED mast light

Dotlux 5158-040155 DOLPHINmini 150W 4000K 1-10V dim LED mast light

In stock

SKU: 944626

Price on request

€556.51

€0

Overview

Technical light with a feel-good guarantee thanks to higher color rendering and two light colors Protection class I with integrated overvoltage protection (10,000 V) Universal installation, mast attachment/top-up on all mast diameters 42-76mm, pivotable +/-15° Multilayer lens optics with Lumileds® LEDs enable even light distribution Solid aluminum cast housing similar to RAL 9006 with pressure equalization valve Reliable and highly efficient LED driver with a service life of > 50,000 hours ensures low maintenance costs Easy installation and tool-free maintenance thanks to separating plug Power reduction via separately available module (80%, 60%, 40%, 20%)

Property	Value
Length:	762 mm
Width:	336 mm
Height/Depth:	179 mm
Max. System power:	150 W
Rated luminous flux according to IEC 62722-2-1:	19750 lm
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
With light source:	no
Light source:	LED not replaceable
Socket:	without
Protection rating (IP):	IP66
Protection class:	without
Impact resistance:	IK08
Color rendering index CRI:	80-89
Voltage type:	AC
With control gear:	no
Adjustable optics:	no
Housing material:	aluminum
Remote control:	without
Constant luminous flux control:	no
Light color:	white
With connection cable:	no
With radio control:	no
With program-controlled light control:	no
Dimming 0-10 V:	yes
Dimming 1-10 V:	yes
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light distributor:	without
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Power factor:	0.95

Characteristics

HABDOLPHINmini 150W 4000K 1-10V dim

Manufacturer

HAN5158-040155

GTIN4260629149870

Rated luminous flux according to IEC 62722-2-119750lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Width336 mm

Dimming 0-10 VYes

Dimming 1-10 VYes

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Remote controlWithout

Height/Depth179 mm

Constant luminous flux controlNo

Power factor0.95

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Length762 mm

Max. system performance150W

With connection cableNo

With operating deviceNo

With radio controlNo

With light sourceNo

With program-controlled lighting controlNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK08

IP protection)IP66

Protection classWithout

Voltage typeAC

Housing materialAluminum
