Dotlux 5200-0FW090 DISCugr D:400mm 40W LED wall / ceiling light

Dotlux 5200-0FW090 DISCugr D:400mm 40W LED wall / ceiling light

In stock

SKU: 944651

Price on request

€383.50

€0

Overview

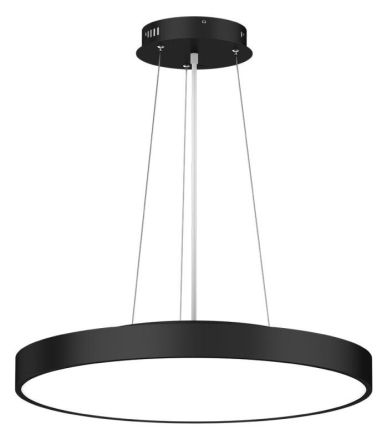

Can be used flexibly as desired: Available as a ceiling, wall, surface or pendant light in 3 sizes (400, 600, 800mm) Glare-free operation thanks to microprism diffuser UGR Modern powder-coated aluminum housing (black - similar to RAL9005) with offset lamp housing 55mm high Simple and quick installation via EASYbase platform Individually adjustable for a wide range of applications thanks to COLORselect technology Adaptable performance thanks to POWERselect (87% / 92% / 95% / 100%) Pleasant feeling of space thanks to indirect light Sustainable product design thanks to easily replaceable components

Property	Value
Max. System power:	40 W
Rated luminous flux according to IEC 62722-2-1:	4300 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP40
Outer diameter:	400 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	no
With control gear:	yes
Suitable for recessed mounting:	no
Height/depth:	86 mm
With motion detector:	no
Color temperature:	4000 K
Rated service life L80/B10 at 25 °C:	50000 h
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Operating device:	LED operating device, current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Luminous flux:	3500 to 4300 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

HABDISCugr D:400mm 40W

Manufacturer

HAN5200-0FW090

GTIN4260712970442

Covering the luminaire with thermal insulation material possibleNo

Outer diameter400 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14300lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Height/Depth86 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Luminous flux3500 to 4300 lm

Max. system performance40W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

Brushed surfaceNo

Without dimming functionYes

IP protection)IP40

Protection classI

Voltage typeAC

Housing materialAluminum
