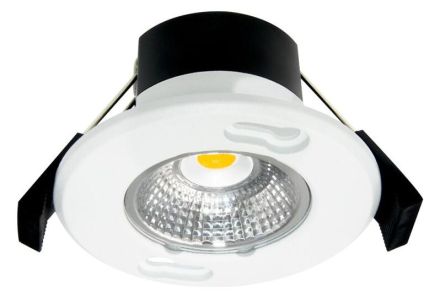

Dotlux 5245-030036 MULTISCREWsun 5W 2200-3000K dim LED wall / ceiling light

In stock
SKU: 944666
€54.04
Into a basketIn the basketGo

Overview

SUNSETDIMMING for atmospheric and cozy lighting design Thanks to its compact design, the screw-on IP44 downlight fits into all device boxes/terminal boxes for hollow walls, flush-mounted, fire protection boxes. Fast and space-saving installation thanks to the integrated 'DIMtoZERO' phase-cut/trailing-cut dimmable power supply (0-100%). Excellent heat management, which allows the light to rest directly on the insulation material. Spacers are not required. The included plug-in mounting brackets enable tool-free installation in ceiling cutouts with a diameter of 50-70 mm Can be screwed directly into solid wood ceilings/beams with a blind hole diameter of 50-52 mm 6 magnetic covers that can be installed without tools and are therefore easy to align are available Reflector technology ensures pleasant, glare-free light Natural color perception thanks to the extra high CRI value >92 Ideal replacement for halogen recessed spotlights MR11/MR16 Can also be integrated cost-effectively into DALI systems with DALI trailing edge phase dimmer Art. No. 5425 Trailing edge phase dimmer Art. No. 5180

PropertyValue
Max. System power:5 W
Rated luminous flux according to IEC 62722-2-1:340 lm
Housing color:Aluminum
Protection class (IP):IP44
Outer diameter:80 mm
Light source:LED replaceable
Protection class:II
With light source:no
Installation height/depth:38 mm
With control gear:yes
Suitable for Recessed mounting:yes
Height/depth:43 mm
With motion detector:no
Color temperature:3000 K
Nominal voltage:220 to 240 V
Rated service life L80/B10 at 25 °C:40000 h
Color rendering index CRI:90-100
Suitable for ceiling mounting:yes
Operating device:LED operating device, current-controlled
Impact resistance:IK04
Luminaire with limited surface temperature 'D-mark':no
Luminous flux:340 lm
Covering of the luminaire with thermal insulation material possible:no
Voltage type:AC
Suitable for track mounting:no
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for pedestal/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:yes
Suitable for cable system:no
Brushed surface:no
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:yes
Dimming leading edge:yes
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Rated ambient temperature according to IEC62722-2-1:-10 to 35 °C
Power factor:0.9
Suitable for computer workstations according to EN 12464-1:no

Characteristics

HABMULTISCREWsun 5W 2200-3000K dim
ManufacturerDotlux
HAN5245-030036
GTIN4260712971043
Covering the luminaire with thermal insulation material possibleNo
Outer diameter80 mm
Rated lifetime L80/B10 at 25 °C40000 hours
Rated luminous flux according to IEC 62722-2-1340lm
Rated ambient temperature according to IEC62722-2-1-10 to 35 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlYes
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth38 mm
Color temperature3000K
Color rendering index CRI90-100
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorAluminum
Height/Depth43 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
LampsLED replaceable
Luminous flux340lm
Max. system performance5W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
Nominal voltage220 to 240 V
Brushed surfaceNo
Without dimming functionNo
Impact resistanceIK04
IP protection)IP44
Protection classII
Voltage typeAC
Dotlux 5245-030036 MULTISCREWsun 5W 2200-3000K dim LED wall / ceiling light
