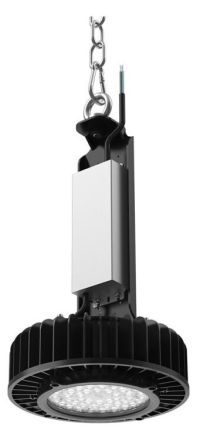

Dotlux 5260-050120 COOLER 100W 5000K 120°ASW LED high bay light

Dotlux 5260-050120 COOLER 100W 5000K 120°ASW LED high bay light

In stock

SKU: 944653

Price on request

€575.72

€0

Overview

Suitable for high temperature environments up to +70°C A cold-forged heat sink with twice the thermal conductivity of die-casting ensures optimal heat dissipation. Vertical cooling fins prevent dust deposits and ensure permanent cooling Extremely robust and durable ESG real glass cover also resists oil and cleaning agents The pressure equalization valve extends the service life of the seals and prevents condensation in the luminaire Modular design for different performance spectra Reduced glare UGR

Property	Value
Max. System power:	100 W
Rated luminous flux according to IEC 62722-2-1:	15300 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP66
Outer diameter:	220 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	no
With control gear:	yes
Suitable for recessed mounting:	no
Length:	435 mm
With motion detector:	no
Color temperature:	5000 K
Nominal voltage:	100 to 240 V
Rated service life L80/B10 at 25 °C:	70000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Luminous flux:	15300 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	no
Rated ambient temperature according to IEC62722-2-1:	-30 to 70 °C
Power factor:	0.9
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

HABCOOLER 100W 5000K 120°ASW

Manufacturer

HAN5260-050120

GTIN4260712971296

Covering the luminaire with thermal insulation material possibleNo

Outer diameter220 mm

Rated lifetime L80/B10 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-115300lm

Rated ambient temperature according to IEC62722-2-1-30 to 70 °C

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Power factor0.9

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Luminous flux15300lm

Length435 mm

Max. system performance100W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage100 to 240 V

Brushed surfaceNo

Without dimming functionNo

Impact resistanceIK08

IP protection)IP66

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum
