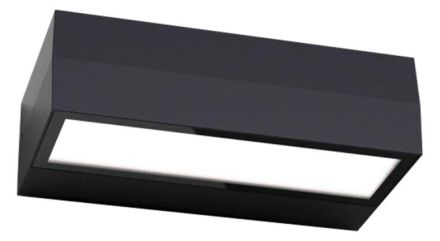

HABBRICK 10W COLORselect black
HAN5296-098060
GTIN4260712971876
Covering the luminaire with thermal insulation material possibleNo
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-1750lm
Rated ambient temperature according to IEC62722-2-1-20 to 45 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width100 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorBlack
Height/Depth60 mm
Power factor0.9
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Length200 mm
Max. system performance10W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
IP protection)IP65
Protection classI
Voltage typeAC
Housing materialAluminum
