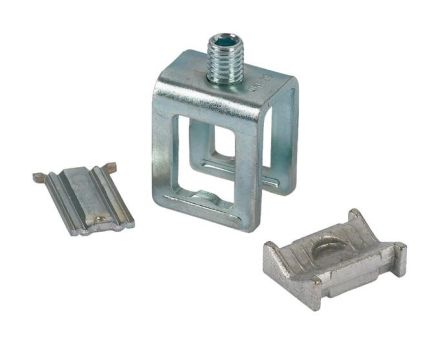

Eaton 002286 K20X5 busbar terminal

In stock
SKU: 546320
€11.51
Into a basketIn the basketGo

Overview

Busbar terminals, for busbar housing CI, connection strip or round conductor, usable for busbars Cu 20x5, connection cross section strip conductor=3x9x0.8 to 6x16x0.8, connection cross section round conductor=35-70, 35-50qmm, rated operating current Ie=100A-250A,

PropertyValue
Busbar width:20 mm
Busbar thickness:5 mm
Max. conductor cross-section:70 mm²
Max. Rated operating current Ie:250 A
Suitable for:Flat bar
Suitable for sector conductor connection:yes
Suitable for strip conductor connection:yes
Width of terminal:38 mm
Suitable for round conductor connection:yes

Characteristics

HABK20X5
Minimal order10 pieces
ManufacturerEaton
HAN002286
GTIN4015080022862
Suitable forFlat rail
