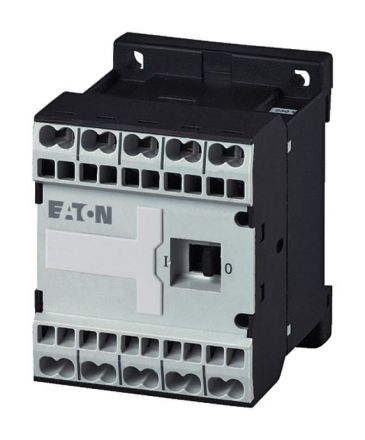

HABDILEM-01-GC (24VDC) -GVP 3-pin DC
Minimal order105 pieces
HAN100790
GTIN4015081005437
Connection type main circuitSpring-loaded connection
Number of auxiliary contacts as normally closed1
Number of normally open contacts as main contacts3
Rated operating power NEMA3.7kW
Rated operational power at AC-3, 400 V4kW
Rated operational power at AC-4, 400 V3kW
Rated operational current Ie at AC-1, 400 V22A
Rated operational current Ie at AC-3, 400 V9 A
Rated operational current Ie at AC-4, 400 V6.6 A
Rated control supply voltage Us at DC24V
Suitable for series installationNo
Voltage type for actuationDC
