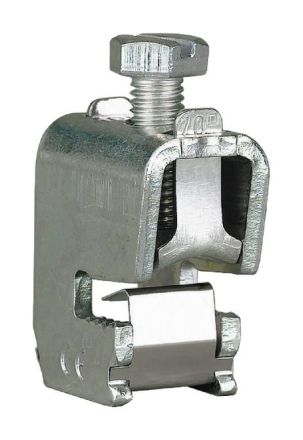

Eaton 107189 AKU70/5 conductor connection terminal

In stock
SKU: 546355
€4.05
Into a basketIn the basketGo

Overview

Universal conductor connection terminals, 16-70qmm, AWG 4-AWG 2/0., directly clamped, 2x (3x9x0.8) or 6x9x0.8, 400A, can be used for all 5mm thick flat rails, width=20.5mm, terminal space WxH=14x14mm, with integrated retaining spring, open terminal space and captive clamping screw, can be used for SASY60i, SASY185i,

PropertyValue
Busbar thickness:5 mm
Max. conductor cross-section:70 mm²
Max. rated operating current Ie:400 A
Suitable for:Flat bar
Suitable for sector conductor connection:yes
Suitable for strip conductor connection:yes
Width of terminal:20.5 mm
Suitable for round conductor connection:yes

Characteristics

HABAKU70/5
Minimal order25 pieces
ManufacturerEaton
HAN107189
GTIN4015081994120
Suitable forFlat rail
