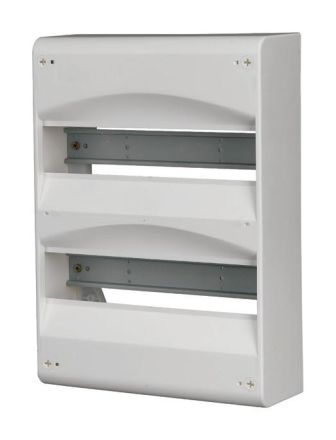

Eaton 110154 BC-A-2/26-G SK II 2-door+rear wall AP small distribution board

In stock
SKU: 769102
€28.73
Into a basketIn the basketGo

Overview

Surface-mounted small distributor BC-A without door, 2-row, 26 TE, protection class 2, protection type IP30, stable DIN rail support frame with longitudinal struts, neutral and protective conductor terminals with solid screw technology, finger-protected, FI-N terminal BCZ-...-KL4 optionally available, slots for FI-N terminal on the support frame, very easy-to-read circuit numbering, fixed part of the contact protection cover, locks can be sealed, door can optionally be retrofitted with a lock, door stop can be changed from right to left, RAL 9010

PropertyValue
Width in division units:26
Number of rows:2
Height:350 mm
Width:250 mm
Depth:94 mm
Protection class (IP):IP30
Color:white
With lock:no
Transparent cover/door:no
Housing material:plastic
RAL number:9010
DIN rail:yes
Mounting option:no
Installation depth:46 mm
EMC version:no
With mounting plate:no
Type of cover:without
Cover design:with cutout
Inner depth:72 mm
Type of closure:other

Characteristics

HABBC-A-2/26-G SK II 2-ro door+back panel
ManufacturerEaton
HAN110154
GTIN4015081097142
Cultivation optionNo
Number of rows2
Type of coverWithout
Type of closureOther
Cover designWith cutout
Width250 mm
Width in pitch units26
DIN railYes
EMC versionNo
Installation depth46 mm
ColorWhite
Height350 mm
Internal depth72 mm
With mounting plateNo
With lockNo
RAL number9010
IP protection)IP30
Depth94 mm
Transparent lid/doorNo
Housing materialPlastic
