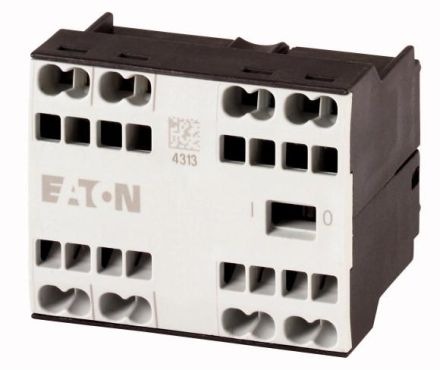

Auxiliary switch module, with positively guided contacts, switching elements according to EN 50012, switching elements according to EN 50012 are to be preferred., Combinations of version E correspond to EN 50011 and are to be preferred., Function: for standard applications, 2-pole, Connection technology: spring-loaded terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operating current AC-15 380 V 400 V 415 V: Ie= 2 A, Rated operating current AC-15 380 V 400 V 500 V: Ie= 1.5 A, Contacts N/O = normally open: 1 N/O, Contacts N/C = normally closed: 1 N/C, Mounting type: front mounting, Can be used for: DILE (E) M-10-C (-G) (.) , Notes: Forced-guided contacts, according to IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules as well as to the integrated auxiliary switches of the DILER, DILE (E) M, auxiliary break contact can be used as a mirror contact according to IEC/EN 60947-4-1 Appendix F (not late break contact)
