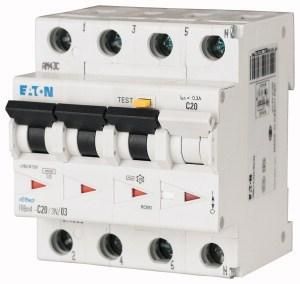

Eaton 171000 FRBM4-C20/3N/003-A A20A 3-pole RCD/MCB

Eaton 171000 FRBM4-C20/3N/003-A A20A 3-pole RCD/MCB

In stock

SKU: 731869

Price on request

€160.78

€0

Overview

High-quality residual current circuit breaker/circuit breaker combination, independent of mains voltage, contact position indicator red - green, terminal rear plug protection, tristable locking slide - enables removal from an existing busbar system, extensive range of accessories can be retrofitted, large selection of rated residual currents, rated currents up to 40 A, tripping characteristics B, C, D, rated switching capacity 10 kA, suitable for use outdoors (construction site power and outdoor distribution) down to -25 °C

Property	Value
Tripping characteristic:	C
Rated current:	20 A
Rated residual current:	0.03 A
Rated voltage:	415 V
Frequency:	50 Hz
Number of poles (total):	4
Width in pitch units:	4
Residual current type:	A
Installation depth:	75.5 mm
Surge current strength:	0.25 kA
Protection class (IP):	IP20
Energy limitation class:	3
Overvoltage category:	3
Pollution degree:	2
Switching neutral conductor:	yes
Number of protected poles:	4
Voltage type:	AC
False tripping protection:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Rated breaking capacity according to EN 61009:	4.5 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1:	4.5 kA
Shutdown characteristics:	instantaneous
With locking device:	no
Ambient temperature during operation:	-25 to 40 °C
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Connectable conductor cross-section stranded:	1 to 25 mm²
