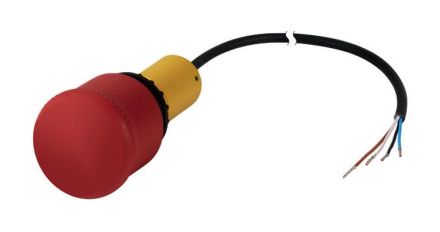

EMERGENCY STOP/EMERGENCY OFF button, product range: RMQ compact solution, complete device, design: mushroom shape, diameter: 38 mm, lighting: unlit, pull release, connection type: cable (black) with open end, 4-pin, cable length: 3.5 m, description: tamper-proof in accordance with ISO 13850, EN 418, mushroom plunger color: red, button base color: yellow, protection class: IP66, IP69K (front), IP65 (rear), connection to SmartWire-DT: no, contact configuration Ö = normally closed: 2 Ö, contact configuration Note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, travel of the operating part and actuation force in accordance with DIN EN 60947-5-1, K.5.4.1 positive opening travel: mm 4.65, maximum travel: mm 5.7, minimum force for positive opening: N 30, Standards and regulations: IEC/EN 60947-5-5,0660
| Property | Value |
| Number of contacts as normally closed: | 2 |
| Connection type auxiliary circuit: | other |
| With lighting: | no |
| Type of unlocking: | pull unlocking |
| Protection class (IP): | IP66 |
| Mounting type: | Flush-mounted |
| Hole diameter: | 22.5 mm |
| Diameter of the cap: | 38 mm |
