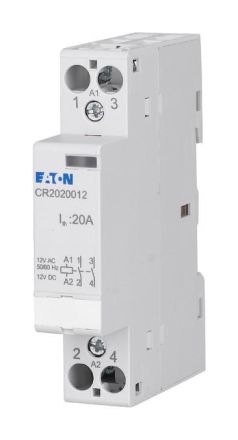

Eaton 193907 CR2002012 Installation contactor

In stock

SKU: 512394

Price on request

€31.07

€0

Overview

Installation contactor, control voltage 12V AC/DC, rated operating current AC1 20A, function: 2 x NC contacts, simple snap-on mounting on 35mm DIN rail, 1TE, standards IEC/EN 60947-4-1 and IEC/EN 61095

Property	Value
Type of operating voltage:	AC/DC
Protection class (IP):	IP20
Max. incandescent lamp load:	1950 W
Rated operating current:	20 A
Rated operating voltage:	400 V
Max. fluorescent lamp load (parallel compensated):	232 VA
Max. fluorescent lamp load (duo circuit):	1160 VA
Max. Fluorescent lamp load:	910 VA
Additional equipment possible:	yes
Slider for manual switching:	no
Type of actuating voltage:	AC/DC
Installation depth:	60 mm
Rated actuating voltage:	10.2 to 13.2 V
Usage category:	1
Number of contacts as normally closed contacts:	2
