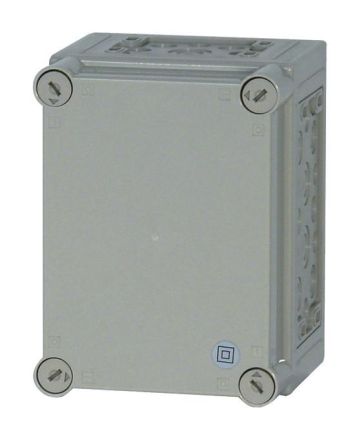

Eaton 194610 CI23E-150-RAL7035 250x187.5x150mm insulated enclosure

In stock
SKU: 512370
€93.36
Into a basketIn the basketGo

Overview

Single empty housing, material polycarbonate, impact-resistant, protection class IP65, patented cover lock with integrated overpressure compensation, with metric pre-punched holes in all side walls, cable entries at the top and bottom each = 1xM32/20 and 6xM20 and 2xM16, at the side each = 2xM32/20 and 4xM25/16 and 4xM20 and 4xM16, fastening tabs for wall mounting, sealable cover locks, side walls can be knocked out, can be converted into a distributor housing by knocking out the side walls, RAL 7035 grey (base box), RAL7035 grey (cover), installation depth with mounting plate = 150mm, cover design: opaque, lower part design: pre-punched, cover can optionally be retrofitted with cylinder lock DVZ...-CI

PropertyValue
Height:250 mm
Width:187.5 mm
Depth:175 mm
Installation depth:150 mm
Inner depth:150 mm
Protection class (IP):other
Protection class:II
Impact resistance:other
Housing material:plastic
RAL number:7035
Mounting type:Surface-mounted
Suitable for outdoor use:yes
Surface:untreated
Suitable for lightning protection:yes
Mounting option:yes
With mounting plate:no
Number of cable entries:30
Number of modules:1
Number of openings for flange plates:4
Type of cover:Cover
Type of Door:without
Cover design:closed
Width in modular units:9
Functional integrity:without
Material thickness housing:6 mm
Material thickness door/cover:6 mm
With lock:no
Rated current (In):1600 A
Transparent cover/door:no
Color:gray
Protection class (NEMA):other

Characteristics

HABCI23E-150-RAL7035 250x187,5x150mm
ManufacturerEaton
HAN194610
GTIN9010238058286
Cultivation optionYes
Number of cable entries30
Number of modules1
Number of openings for flange plates4
Type of coverLid
Type of doorWithout
Cover designClosed
Width187.5 mm
Width in pitch units9
Installation depth150 mm
ColorGray
Functional preservationWithout
Suitable for outdoor useYes
Suitable for lightning protectionYes
Height250 mm
Internal depth150 mm
Housing material thickness6 mm
Material thickness door/lid6 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
Nominal current (In)1600A
SurfaceUntreated
RAL number7035
Impact resistanceOther
IP protection)Other
Protection class (NEMA)Other
Protection classII
Depth175 mm
Transparent lid/doorNo
Housing materialPlastic
