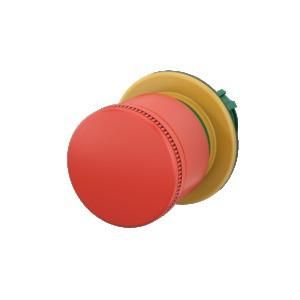

EMERGENCY STOP/EMERGENCY OFF button, Product range: RMQ-Titan, Single device, Design: Mushroom shape, Diameter: 30 mm, Illumination: unlit, Pull release, Description: Tamper-proof in accordance with ISO 13850/EN 418, Mushroom plunger color: red, Button base color: yellow, Protection class: IP65, IP66, IP69, Connection to SmartWire-DT: no, Front dimensions: 35, Notes: Max. equipment: 4 x M22-(C)K01, .10 or 2 x M22-(C)K02, .20, .11, Standards and regulations: EN 50581:2012, EN 60947-5-1:2017, EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017, EN ISO 13850:2015, 2006/42/EC Machinery Directive
| Property | Value |
| Button color: | red |
| Hole diameter: | 30.5 mm |
| Release type: | Pull release |
| Momentary: | no |
| Switching function latching: | yes |
| Lens design: | round |
| Cap diameter: | 30 mm |
| Protection class (IP): | IP65 |
| Suitable for lighting: | no |
| Suitable for EMERGENCY STOP: | yes |
| Color of front ring: | other |
| Button design: | high |
| With front ring: | no |
| Material of front ring: | other |
| Protection class (NEMA): | 4X |
