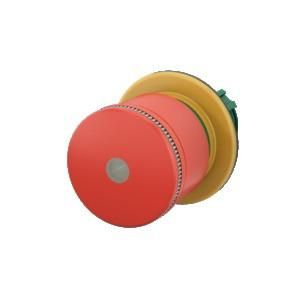

EMERGENCY STOP / EMERGENCY OFF button, product range: RMQ-Titan, single device, design: mushroom shape, diameter: 30 mm, lighting: can be illuminated with LED element, pull to release, description: tamper-proof in accordance with ISO 13850/EN 418, colour of mushroom plunger: red, colour of button base: yellow, protection class: IP65, IP66, IP69, connection to SmartWire-DT: no, front dimensions: 35, notes: max. equipment: 4 x M22-(C)K01, .10 or 2 x M22-(C)K02, .20, .11 and 1 x M22-(F)LED..., when using M22-PVL. with 1 x M22-K01SMC10 (1-channel) the article M22-XSMC (order no.: 173030) is required. Please order separately., Standards and regulations: EN 50581:2012, EN 60947-5-1:2017, EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017, EN ISO 13850:2015, 2006/42/EC Machinery Directive
| Property | Value |
| Button color: | red |
| Hole diameter: | 30.5 mm |
| Release type: | Pull release |
| Momentary: | no |
| Switching function latching: | yes |
| Lens design: | round |
| Cap diameter: | 30 mm |
| Protection class (IP): | IP65 |
| Suitable for lighting: | yes |
| Suitable for EMERGENCY STOP: | yes |
| Color of front ring: | other |
| Button design: | high |
| With front ring: | no |
| Material of front ring: | other |
| Protection class (NEMA): | 4X |
