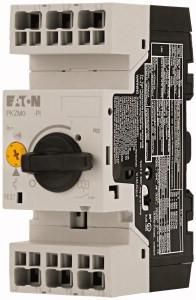

Eaton 199170 PKZM0-4-T-PI transformer circuit breaker

In stock

SKU: 830603

Price on request

€83.33

€0

Overview

Transformer circuit breaker, IEC/EN 60947,0660, overload release = 2.5 - 4 A, max. 84 A, rated continuous current Iu = 4 A, design of the actuating element: rotary knob, number of poles: 3, protection class: device = IP20, connection terminals = IP20, ambient temperature: storage = - 40 - 80 °C, open = -25 - +55 °C, energy feed direction as required

Property	Value
Rated continuous current Iu:	4 A
Connection type main circuit:	Spring-loaded connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	other
Protection class (IP):	IP20
Overload release current setting:	4 A
Setting range of the instantaneous short-circuit release:	84 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	Rotary knob
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	no
With trip detector:	no
Complete device with protection unit:	no
DIN rail mounting optional:	yes
