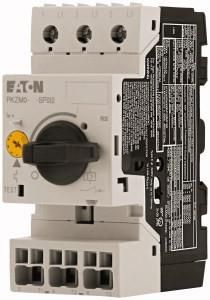

Eaton 199189 PKZM0-0,16-SPI32 Motor protection switch

In stock
SKU: 830559
€66.46
Into a basketIn the basketGo

Overview

Motor protection switch, IEC/EN 60947,0660, overload release = 0.1 - 0.16 A, max. 2.5 A, release technology: thermomagnetic, with thermal protection: yes, phase failure sensitive: yes, rated continuous current Iu = 0.16 A, rated operating power at AC-3, 230 V = 0 kW, rated operating power at AC-3, 400 V = 0 kW, design of the actuating element: rotary knob, number of poles: 3, rated short-circuit breaking current Icu at 400 V, AC = 150 kA, protection class: device = IP20, connection terminals = IP20, ambient temperature: storage = - 40 - 80 °C, open = -25 - +55 °C, energy feed direction as required

PropertyValue
Number of poles:3
Rated operating voltage:690 V
Rated continuous current Iu:0.16 A
Rated short-circuit breaking current Icu at 400 V, AC:150 kA
Overload release current setting:0.16 A
Release technology:thermomagnetic
Phase failure sensitive:yes
Device design:Built-in device, fixed installation technology
Degree of protection (IP):IP20
Width:45 mm
Setting range of the instantaneous short-circuit release:2.5 A
With integrated auxiliary switch:no
With integrated undervoltage release:no
Height:102 mm
Depth:75 mm
Design of the actuating element:Rotary knob
With thermal protection:no

Characteristics

HABPKZM0-0,16-SPI32
ManufacturerEaton
HAN199189
GTIN4015081972739
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating voltage690V
Rated continuous current Iu0.16A
Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA
Width45 mm
Setting range of the instantaneous short-circuit release2.5A
Device typeBuilt-in device Fixed installation technology
Height102 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionNo
Sensitive to phase failureYes
Number of poles3
IP protection)IP20
Depth75 mm
Overload release current setting0.16A
