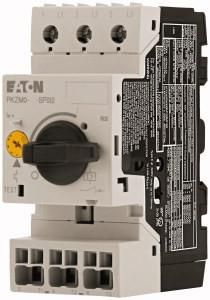

Eaton 199199 PKZM0-12-SPI32 Motor protection switch

Eaton 199199 PKZM0-12-SPI32 Motor protection switch

In stock

SKU: 830587

Price on request

€88.88

€0

Overview

Motor protection switch, IEC/EN 60947,0660, overload release = 0.1 - 0.16 A, max. 2.5 A, release technology: thermomagnetic, with thermal protection: yes, phase failure sensitive: yes, rated continuous current Iu = 0.16 A, rated operating power at AC-3, 230 V = 0 kW, rated operating power at AC-3, 400 V = 0 kW, design of the actuating element: rotary knob, number of poles: 3, rated short-circuit breaking current Icu at 400 V, AC = 150 kA, protection class: device = IP20, connection terminals = IP20, ambient temperature: storage = - 40 - 80 °C, open = -25 - +55 °C, energy feed direction as required

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	3 kW
Rated operating power at AC-3, 400 V:	5.5 kW
Rated continuous current Iu:	12 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	50 kA
Overload release current setting:	12 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	186 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	102 mm
Depth:	75 mm
Design of the operating element:	Rotary knob
With thermal protection:	no
