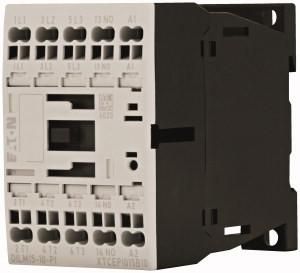

Eaton 199252 DILM15-10 (42V50HZ,48V60HZ) -PI contactor

Power contactor for motors, power contactors up to 170 A, 3-pole, utilization category: AC-1: non-inductive or slightly inductive load, resistance furnaces, AC-3: squirrel cage motors: starting, switching off during operation, AC-4: squirrel cage motors: starting, countercurrent braking, reversing, inching, connection technology: push-in terminals, not suitable for motors of efficiency class IE3., number of poles: 3-pole, rated operating current AC-3 380 V 400 V: Ie= 15.5 A, rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 18 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 50 A, encapsulated: Ith= 45 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7.5 kW, 660 V 690 V: P= 7 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 2 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 4.4 kW, can be combined with auxiliary switch: DILM12-XHI.-PI, DILM32-XHI.-PI, DILA-XHI(V).-PI, contact configuration S = normally open: 1 S, switching elements in accordance with EN 50012., current type AC/DC: alternating current operation
