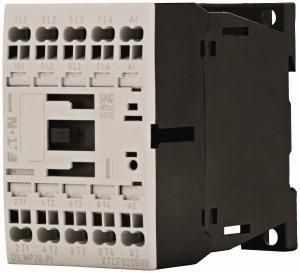

Eaton 199260 DILMP20 (110V50HZ,120V60HZ) -PI contactor

In stock

SKU: 830708

Price on request

€54.59

€0

Overview

Power contactor for 4-pole consumers, power contactors up to 200 A, 4-pole, utilization category: AC-1: non-inductive or slightly inductive load, resistance furnaces, AC-3/AC-3e: squirrel cage motors: starting, switching off during operation, connection technology: push-in terminals, number of poles: 4-pole, 380 V 400 V: Ie= 12 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 18 A, conventional thermal current 1-pole open: Ith= 60 A, encapsulated: Ith= 54 A, 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, switching elements according to EN 50012., current type AC/DC: alternating current operation

Property	Value
Number of normally open contacts as main contacts:	4
Rated operating power at AC-3, 400 V:	5.5 kW
Rated operating power at AC-4, 400 V:	4.5 kW
Rated operating current Ie at AC-1, 400 V:	22 A
Rated operating current Ie at AC-3, 400 V:	12 A
Rated operating current Ie at AC-4, 400 V:	10 A
Voltage type for Actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	110 V
Rated control supply voltage Us at AC 60 Hz:	120 V
Type of connection main circuit:	Spring-loaded connection
Suitable for series installation:	no
