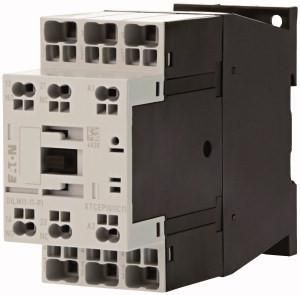

HABDILM11-11 (110V50HZ,120V60HZ) -PI
HAN199270
GTIN4015081973545
Connection type main circuitSpring-loaded connection
Number of auxiliary contacts as normally open1
Number of auxiliary contacts as normally closed1
Number of normally open contacts as main contacts3
Rated operational power at AC-3, 400 V4kW
Rated operational power at AC-4, 400 V2.5kW
Rated operational current Ie at AC-1, 400 V45A
Rated operational current Ie at AC-3, 400 V11 A
Rated operational current Ie at AC-4, 400 V6A
Rated control supply voltage Us at AC 50 Hz110V
Rated control supply voltage Us at AC 60 Hz120V
Suitable for series installationNo
Voltage type for actuationAC
