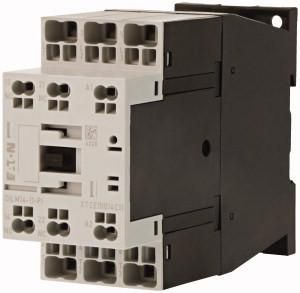

Eaton 199274 DILM14-11 (230V50HZ,240V60HZ) -PI contactor

In stock
SKU: 830667
€55.25
Into a basketIn the basketGo

Overview

Power contactor for motors, power contactors up to 170 A, 3-pole, utilization category: AC-1: non-inductive or slightly inductive load, resistance furnaces, AC-3/AC-3e: squirrel cage motors: starting, switching off during operation, AC-4: squirrel cage motors: starting, countercurrent braking, reversing, inching, connection technology: push-in terminals, also suitable for motors of efficiency class IE3., number of poles: 3-pole, rated operating current AC-3 380 V 400 V: Ie= 14 A, rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 40 A, encapsulated: Ith= 32 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 88 A, encapsulated: Ith= 80 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 10 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 2.5 kW, 380 V 400 V: P= 4.7 kW, 660 V 690 V: P= 6.7 kW, can be combined with auxiliary switch: DILM32-XHI.-PI, DILA-XHI(V).-PI, contact configuration S = normally open contact: 1 S, contact configuration Ö = normally closed contact: 1 Ö, switching elements in accordance with EN 50012., With Mirror contact., Current type AC/DC: AC operation

PropertyValue
Number of normally open contacts as main contacts:3
Number of auxiliary contacts as normally closed contacts:1
Number of auxiliary contacts as normally open contacts:1
Rated operating power at AC-3, 400 V:5.5 kW
Rated operating power at AC-4, 400 V:3 kW
Rated operating current Ie at AC-1, 400 V:45 A
Rated operating current Ie at AC-3, 400 V:14 A
Rated operating current Ie at AC-4, 400 V:7 A
Type of voltage for actuation:AC
Rated control supply voltage Us at AC 50 Hz:230 V
Rated control supply voltage Us at AC 60 Hz:240 V
Type of connection main circuit:Spring-loaded connection
Suitable for series installation:no

Characteristics

HABDILM14-11 (230V50HZ,240V60HZ) -PI
ManufacturerEaton
HAN199274
GTIN4015081973583
Connection type main circuitSpring-loaded connection
Number of auxiliary contacts as normally open1
Number of auxiliary contacts as normally closed1
Number of normally open contacts as main contacts3
Rated operational power at AC-3, 400 V5.5kW
Rated operational power at AC-4, 400 V3kW
Rated operational current Ie at AC-1, 400 V45A
Rated operational current Ie at AC-3, 400 V14 A
Rated operational current Ie at AC-4, 400 V7 A
Rated control supply voltage Us at AC 50 Hz230V
Rated control supply voltage Us at AC 60 Hz240V
Suitable for series installationNo
Voltage type for actuationAC
