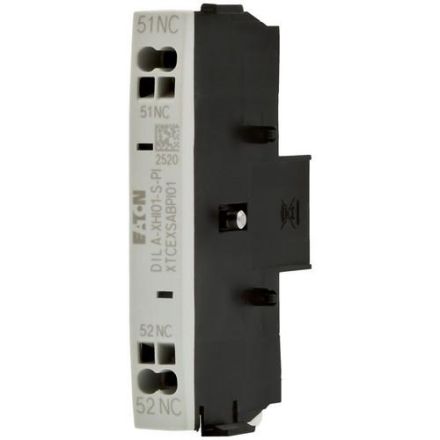

Auxiliary switch module, with positively guided contacts, for standard applications, side-mounted auxiliary switches, side mounting, 1 pole, push-in terminals, conventional thermal current 1-pole, open, at 60 °C: Ith = 16 A, rated operating current AC-15, 220 V 230 V 240 V: Ie = 4 A, 380 V 400 V 415 V: Ie = 4 A, N/O = normally open:, N/C = normally closed: 1 N/C, can be used for: DILA.-PI, DILM7.-PI, DILM9.-PI, DILM12.-PI, DILM15.-PI, DILMP20.-PI, positively guided contacts, in accordance with IEC/EN 60947-5-1 Appendix L, can be used within the auxiliary switch modules as well as for the integrated auxiliary switches of the DILM 7 - DILM32, auxiliary opener as mirror contact according to IEC/EN 60947-4-1 Annex F (not late breaker)
| Property | Value |
| Number of contacts as normally closed: | 1 |
| Mounting type: | Side mounting |
| Type of electrical connection: | Spring-loaded connection |
| Design: | Plug-in |
| Rated operating current Ie at AC-15, 230 V: | 4 A |
| Socket: | without |
