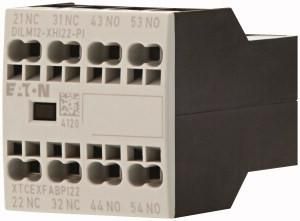

Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front fastening, 4-pole, push-in terminals, conventional thermal current 1-pole, open, at 60 °C: Ith = 16 A, rated operating current AC-15, 220 V 230 V 240 V: Ie = 4 A, 380 V 400 V 415 V: Ie = 4 A, S = normally open: 2 S, Ö = normally closed: 2 Ö, can be used for: DILM7.-PI, DILM9.-PI, DILM12.-PI, DILM15.-PI, DILMP20.-PI, positively guided contacts, according to IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules as well as for the integrated auxiliary switches of the DILM 7 - DILM32, auxiliary break contact can be used as Mirror contact according to IEC/EN 60947-4-1 Annex F (not late opening)
| Property | Value |
| Number of contacts as normally open: | 2 |
| Number of contacts as normally closed: | 2 |
| Mounting type: | Front mounting |
| Type of electrical connection: | Spring-loaded connection |
| Design: | plug-in |
| Rated operating current Ie at AC-15, 230 V: | 4 A |
| Socket: | without |
